WMI Stage 1+ Turbo

$370.0$587.7

Water/ Methanol Injection Kit benefits:

  • Reduces intake air temperature.
  • Prevent from melting the pistons by decreasing EGT.
  • Increasing the total number of octane prevent knocking.
  • Increase dynamic compression.
  • Increase in combustion efficiency.
  • Reduces carbon monoxide (CO) emissions.
  • Reduces carbon dioxide (CO2) emission.
  • Reduces NOx emissions.
  • Reduces HC emissions.

Water-Methanol Injection Kit features:

  • When the pump starts, the led turns on and you can set the desired level.
  • The kit has the latest technology and digital equipment.
  • Electronically controlled pump controller.
  • All parts are produced from methanol-durable materials.
  • Easy installation with special plugs.
  • Optional transfer pump offers up to use.
  • Optional horizontal float switch.

Instruction Manual

Description
Additional information

Stage 1+ Turbo Kit with 3-36 psi adjustable pressure switch for turbocharged gasoline cars.

The operation: the system starts injecting when the boost switch reaches the user-adjustable point and it injects a fixed amount of fluid through the injector-style nozzle until the switch opens again.

The water/ Methanol Injection pump has no pressure cut-off switch to eliminate oscillation/pulsation. Internally bypasses for a smooth constant even flow at the nozzle.  Our standard water-methanol pump is suitable for up to 1000hp. Suppose you need more than 1260 ml/min or 20 GPH. Please choose the bigger pump and controller.

The new integrated solenoid valve and the nozzle assembly offer 100% safety for all injection systems utilizing a rear-mounted reservoir, injection points under vacuum, or installs where the injection nozzle is lower than the water-methanol reservoir. The solenoid fits the nozzle between the pump and injection point and locks fluid in place when not in use adding safety and peace of mind to any injection system. The solenoid-mounted nozzle works as an injector style. Because the reaction time is fast.

All metal equipment has the durability to corrosion of methanol and water, which constitute corrosion impact-resistant nickel-plated brass, brass, and EPDM grade plastic material.

All of our products are guaranteed for 2 years against the fabricated problem from the date of receipt by you.

Nozzles have a flow rating of your choice:

95cc / 125cc / 157cc / 189cc /  220cc / 252cc / 283cc / 315cc / 378cc / 378cc / 440cc / 504cc / 567cc / 630cc / 755cc / 880cc / 1000cc / 1130cc / 1260cc / 1575cc / 1890cc / 2200cc

1.5 GPH | 2 GPH | 2.5 GPH | 3 GPH | 3.5 GPH | 4 GPH | 4.5 GPH | 5 GPH | 6 GPH | 7 GPH | 8 GPH | 9 GPH | 10 GPH | 12 GPH | 14 GPH | 16 GPH | 18 GPH | 20 GPH | 25 GPH | 30 GPH | 35 GPH

100% Water:  10-15% Water/ Fuel ratio or 0.5-1cc per HP

%50-50 Water-Methanol: 15-20% W-M/ Fuel ratio or  1-1.5cc per HP

100% Methanol: 20-25% Methanol/ Fuel ratio or 1.5-2cc per HP

Please indicate which nozzle size and hose color you prefer before the ordered item. If you don’t specify the size, we will send you a 252 ml/min (4 GPH) nozzle and Red Hose.

Included:

  1. High-Pressure Diaphragm pump
  2. 2 x 3/8″ NPT – ¼” compression type pump fitting
  3. Nozzle
  4. 40-micron stainless steel filter
  5. Nozzle mounting bung
  6. Solenoid valve
  7. 1/8″ NPT – ¼” compression-type hose fitting
  8. 3-36 psi adjustable boost pressure switch
  9. 1/8″ NPT – 1/4″ hose female fitting for pressure switch
  10. 1/4″ Tee for vacuum/ boost source
  11. Controller with wiring loom
  12. 1,15 Gallon/ 4,6 Quart/ 4,3 Liter plastic tank
  13. Plastic tank cap
  14. 1/8″ NPT – ¼” compression-type tank fitting
  15. 20 FT/ 6 meter ¼” OD. injection hose
  16. 2*Fully insulated female cable connector
  17. 2*Fully insulated butt cable connector
  18. Fully insulated Ground cable connector
  19. 5*zip tie
  20. 2*screw and 2*washer for tank
  21. 4*screw and 4*washer for pump
  22. 3d sticker
  23. 8,5*4,5cm sticker
  24. 2 x 5*2,5cm sticker
  25. Installation manual
Weight 3 kg
Dimensions 30 × 25 × 12 cm
Car Brand

Acura, Alfa Romeo, Aston Martin, Audi, Bentley, BMW, Bugatti, Buick, Cadillac, Caterham, Chery, Chevrolet, Chrysler, Citroën, Cupra, Dacia, Daewoo, Daihatsu, Dodge, DS Automobiles, Eagle, Ferrari, Fiat, Ford, GAZ, Geely, Hennessey, Honda, Hyundai, Ikco, Infiniti, Isuzu, Jaguar, Kia, Koenigsegg, Lada, Lamborghini, Lancia, Lexus, Lincoln, Lotus, Maserati, Mazda, McLaren, Mercedes Benz, Mercury, MG, Mini, Mitsubishi, Morgan, Moskwitsch, Nissan, Oldsmobile, Opel, Other, Pagani, Peugeot, Plymouth, Pontiac, Porsche, Proton, Renault, Rolls-Royce, Rover, Saab, Saturn, Seat, Skoda, Smart, Subaru, Suzuki, Tata, Toyota, Volkswagen, Volvo

Engine cc

1000cc – 1600cc, 1601cc – 2500cc, 2501cc – 4000cc, 4000cc +

Fuel Type

Forced Induction Gasoline

Hp

up to 100hp, 101-150hp, 151-200hp, 201-250hp, 251-300hp, 301-350hp, 351-400hp, 401-450hp, 451-500hp

Hose Color & Type

Nylon Blue, Nylon Red, PTFE

Tank Size

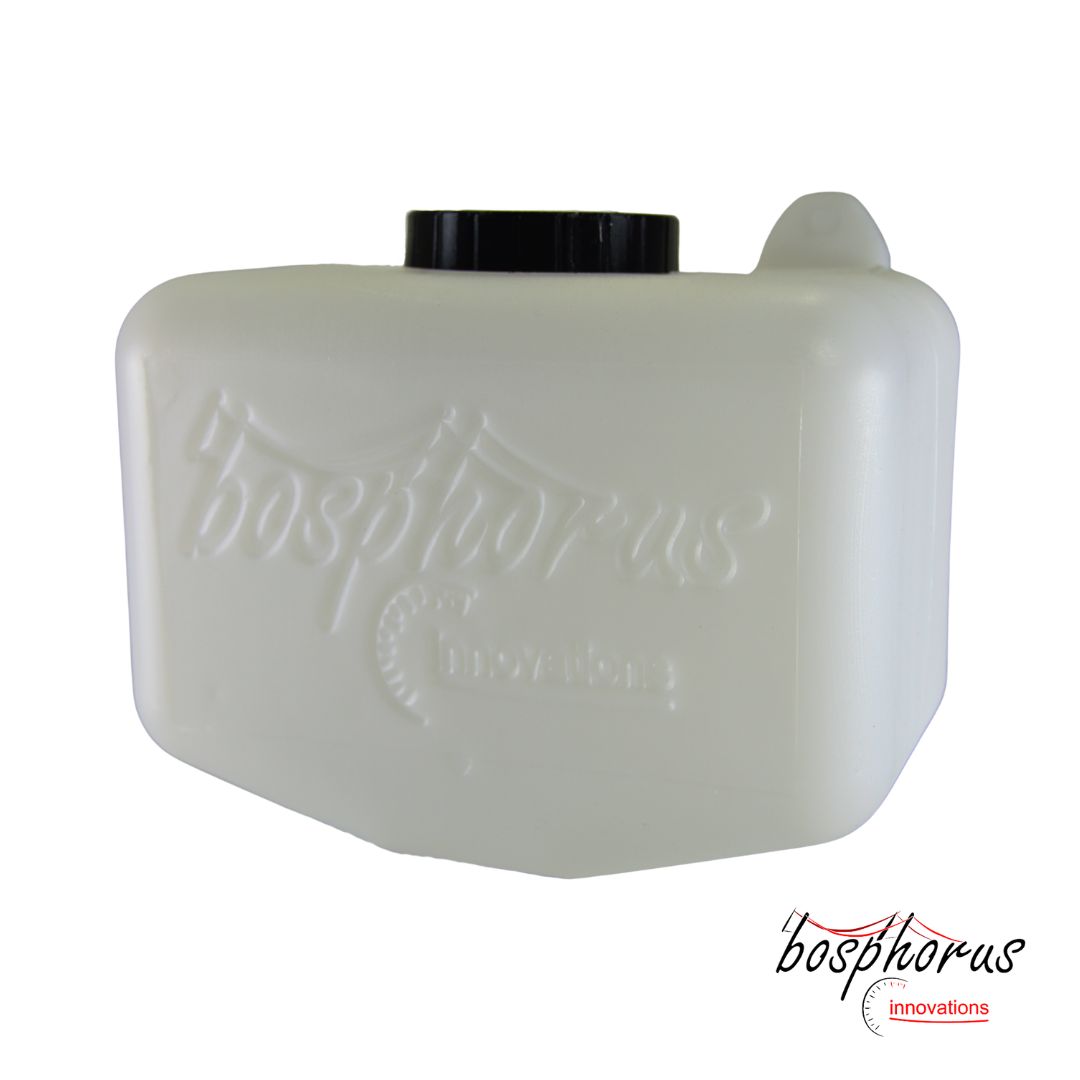

No Tank, Small Size 3 Lt/ 0.8 Gallon, Standard M Tank 5.9 Lt/ 1.58 Gallon, Low Profile 5 Lt/ 1.32 Gallon, L Tank 10 Lt/ 2.64 Gallon, XL Tank 20 Lt/ 5.28 Gallon

Mounting Method

Standard Mount (For vehicles with large mounting space), Remote Mount (For vehicles with narrow mounting space), V Engine (attached to solenoid with double nozzle hose)
