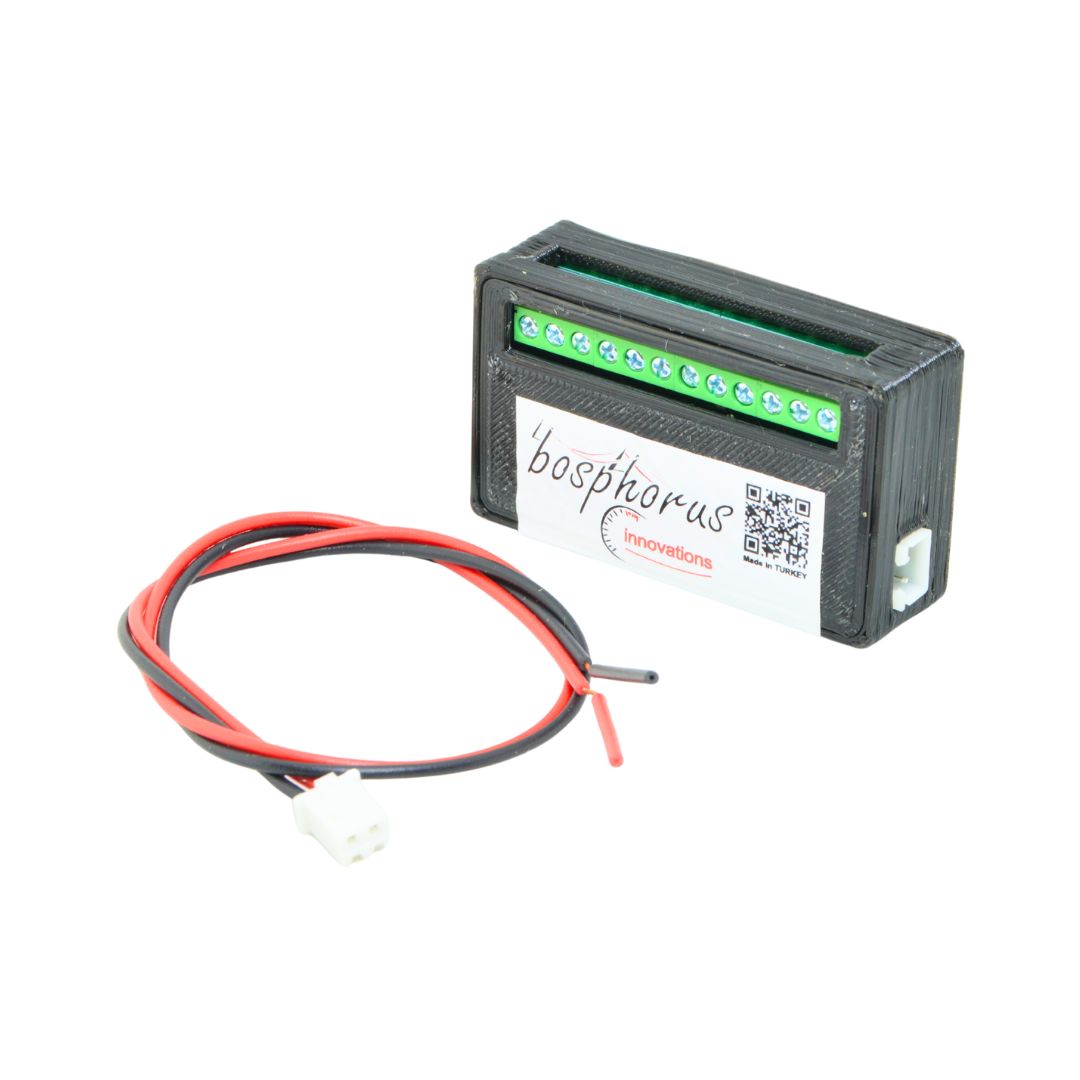

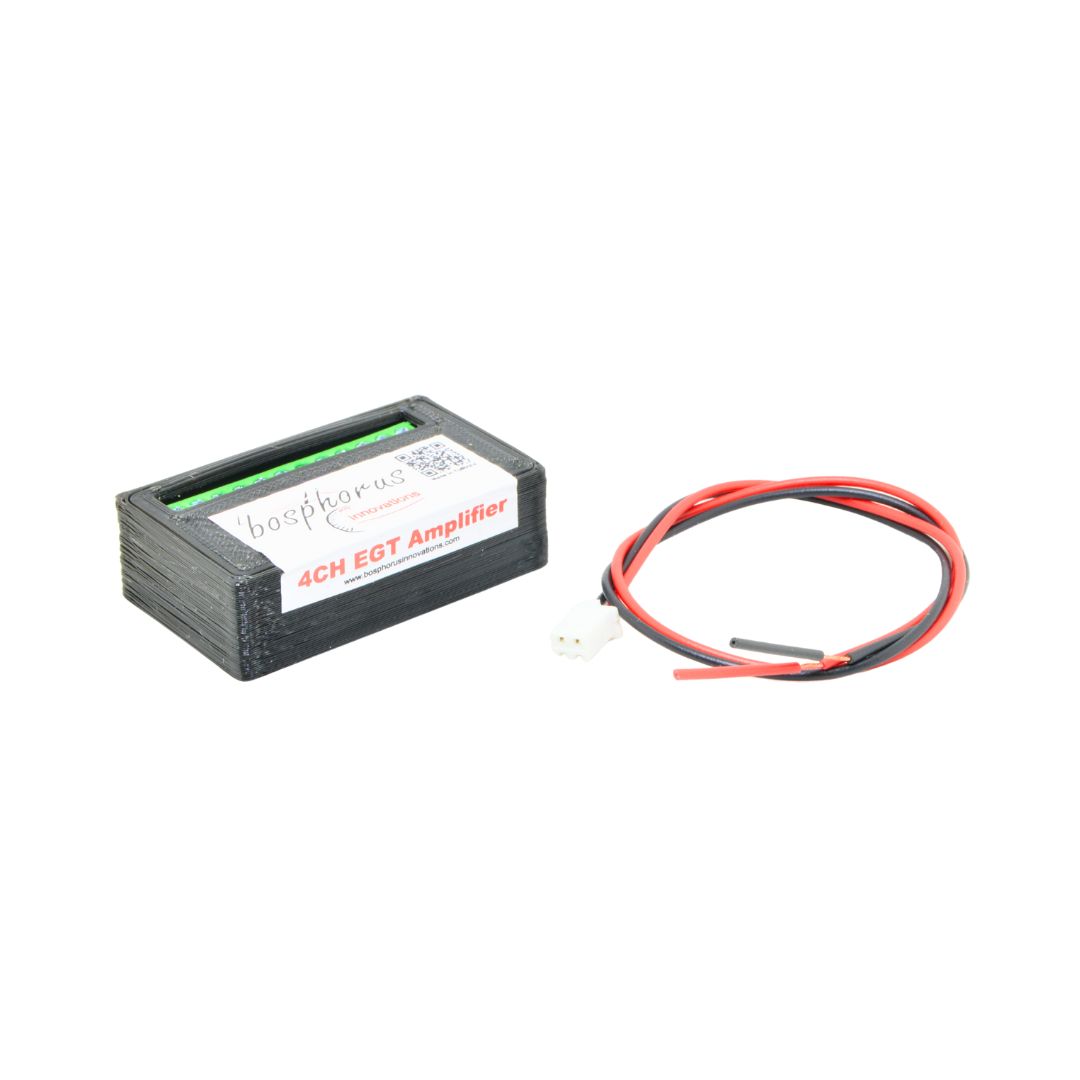

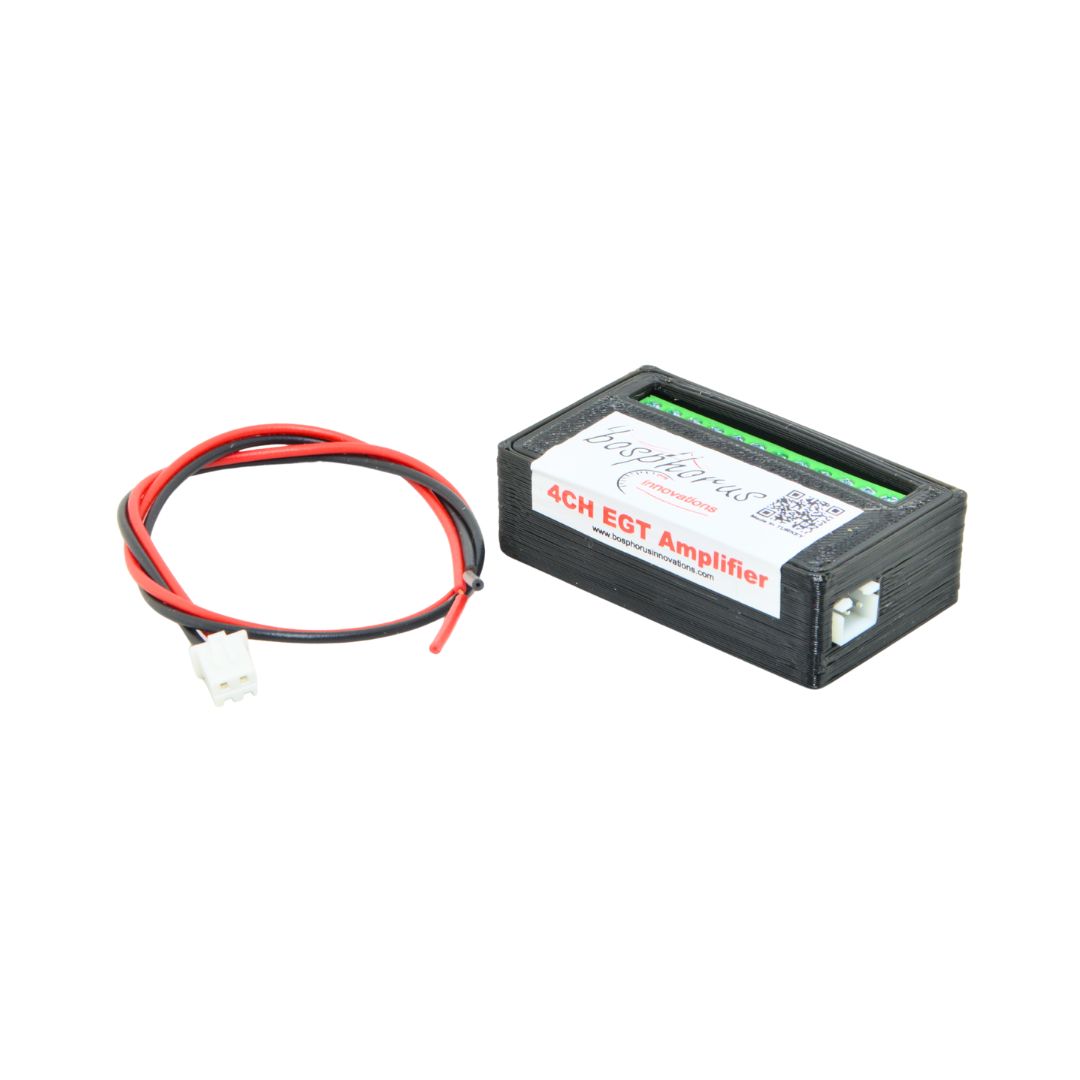

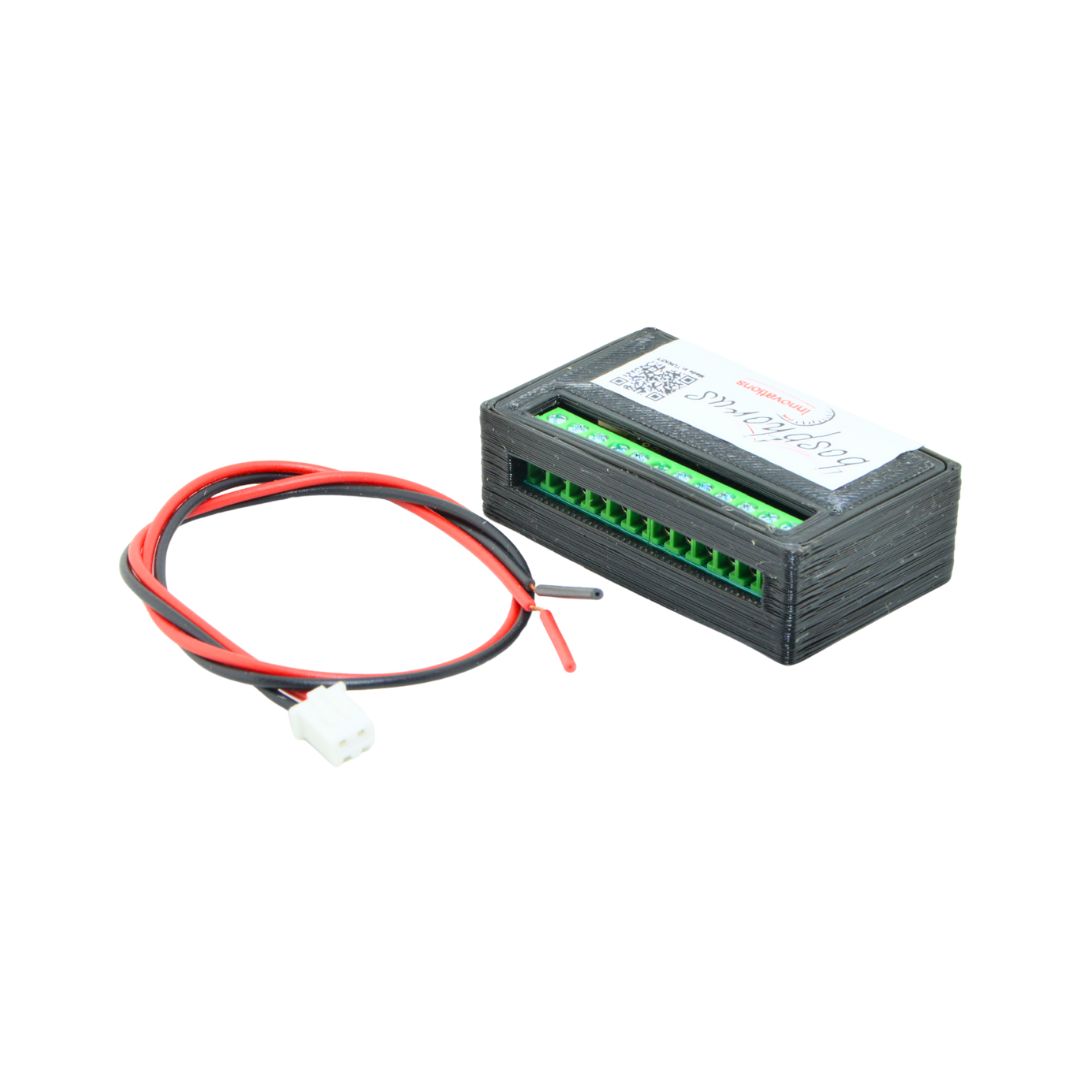

EGT Amplifier 4 CH


  • 4 Channel input-output (measures 4 EGT sensors)
  • Measurement range: 0-1250°C (32-2282°F)
  • Analog output: 0-5V
  • Measurement sensitivity: 4mV/°C
  • Accuracy:  +/- 5%
  • AD8495 integrated circuit
  • SMD technology electronic circuit
  • Power supply: 8-32 V DC (You can use the 24v truck or marine electrical systems)
  • Mounting ears for easy fixing
  • IP66 grade waterproof
  • IP58 grade dustproof
  • Dimensions: 35mm x 50mm x 6,5mm
  • 2-year warranty

You can use automotive gauges, data-loggers and standalone or piggyback ECUs for exhaust temperature (EGT) measurements. (working with AEM, Stack, Halteck, VEMS, Motec, Megasquirt and etc.)

We produce and sell dual and quad-channel EGT k-type amplifiers. You can see those in our store.

Download 4 CH EGT K TYPE Thermocouple Amplifier Pdf

In stock (can be backordered)

Reviews (0)


  • Quad Channel EGT-K Thermocouple Amplifier K-Type 0-1250°C Analog output 0-5V AD8495
  • 1 meter/3.3 ft cable
  • Instruction Manuel

Wiring Diagram:

T4 + T4 – T4 Out T3 + T3 – T3 Out GND 12V
Quad Thermocouple


T2 + T2 – T2 Out T1 + T1 – T1 Out GND 12V
 Amplifier 0-5v Output
