$195.5
The Bosphorus Innovations Intercooler Water Spray Kit V3 Stage 1 is an efficient, budget-friendly cooling solution designed to lower intake air temperatures in turbocharged and high-performance vehicles. Featuring a manual push-button activation setup, it disperses a fine mist over the intercooler core on demand to improve heat transfer and eliminate heat soak during heavy loads or repeated acceleration.
Manual Push-Button Control: Driver-activated switch allowing you to deploy intercooler cooling precisely when you need it.
5 Bar / 72 PSI Pump: Delivers a reliable flow rate of up to 3 liters per minute for high-pressure mist atomization.
Super-Atomizing Nozzles: Includes two advanced spray nozzles and an anti-drip check valve for clean, controlled spraying.
Compact 3L Reservoir: Practical water storage capacity that fits neatly into your vehicle.

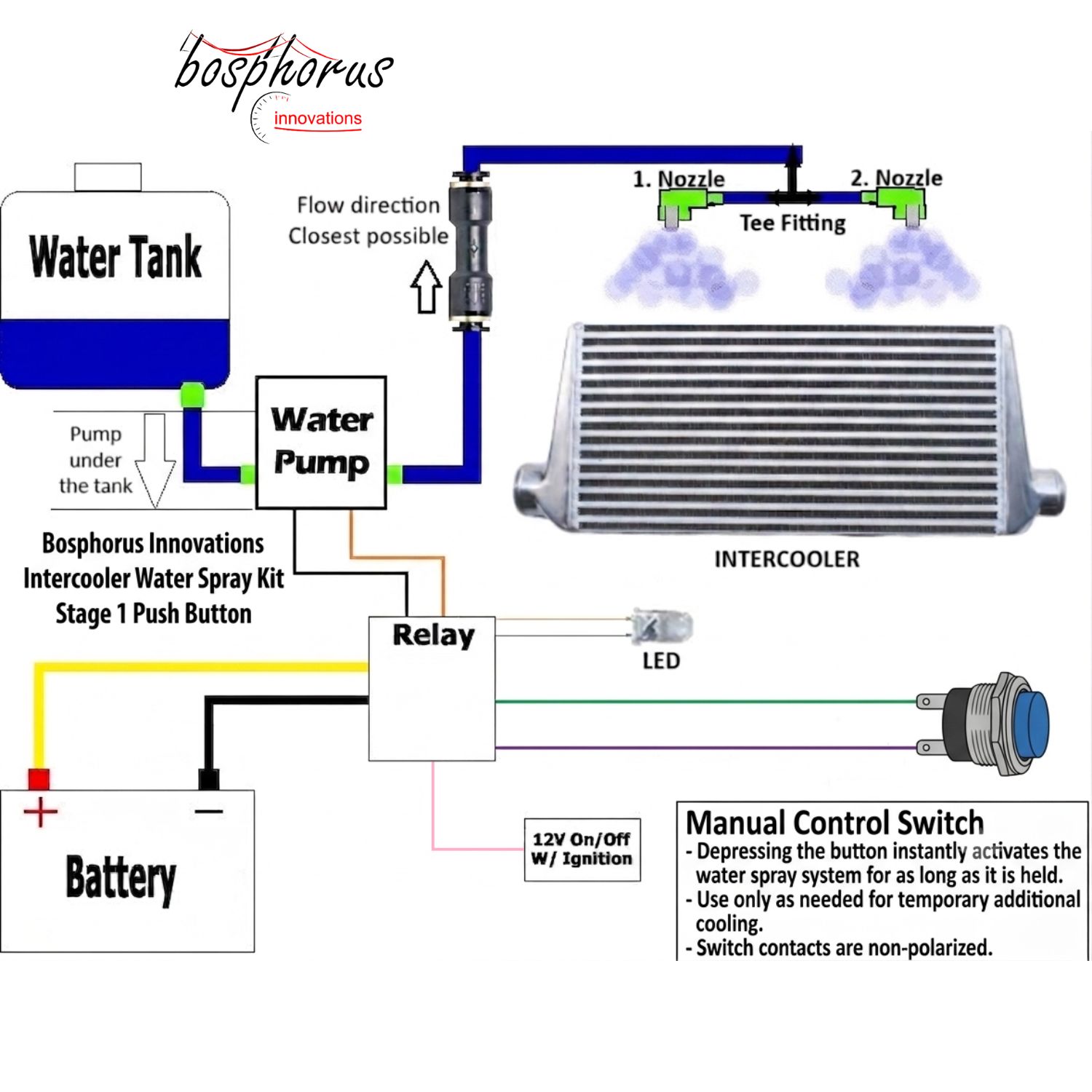

Download: Intercooler_Water_Spray_V3_Stage1_Installation_Guide_EN
The Bosphorus Innovations Intercooler Water Spray Kit V3 Stage 1 is engineered to combat heat soak and maintain consistent engine performance under demanding driving conditions. By applying a fine water mist directly onto the intercooler surface via a manual dashboard push-button, it accelerates heat dissipation from the core, resulting in denser, cooler charge air entering the engine.
High-Performance Cooling & Versatility Powered by a 5 bar (72 psi) high-pressure water pump, the system ensures optimal atomization through two super-atomizing spray nozzles. While optimized primarily for air-to-air intercoolers, its versatile design is equally effective for cooling oil coolers and AC radiators.
Key Features & Advantages
Reduced Intake Temperatures: Lowers IAT to help sustain peak power output during track days or spirited street driving.
Anti-Drip Architecture: Integrated check valve stops unwanted fluid dripping when the pump is idle.
Durable Components: Lightweight, water-resistant hardware built specifically for harsh automotive environments.
Important Note: The water pump is not self-priming. It must be mounted underneath the water tank as outlined in the installation instructions. Always use clean drinking water only—do not use alcohol or detergent-based additives.
Technical Specifications
Product: Intercooler Water Spray Kit V3 Stage 1
Tank Capacity: 3 Liters (0.8 Gallons)
Pump Pressure: 5 Bar / 72 PSI
Pump Flow Rate: Up to 3 Liters/min
Tubing: 6 Meters (Blue water tubing)
Electrical System: 12V (Maximum current: 2A)
Activation Type: Manual Push-Button Switch
Target Applications: Air-to-Air Intercoolers, Oil Coolers, AC Radiators
Package Contents
1 x 3-Liter Water Tank with Cap and Fittings
1 x 5 Bar Water Pump with Connectors
1 x 6-Meter Blue Water Tubing
1 x 2.5-Meter Wiring Loom with Push Button Switch
2 x Super-Atomizing Spray Nozzles with Anti-Drip Check Valve
Mounting Hardware (Screws and Washers)
1 x Installation Manual
